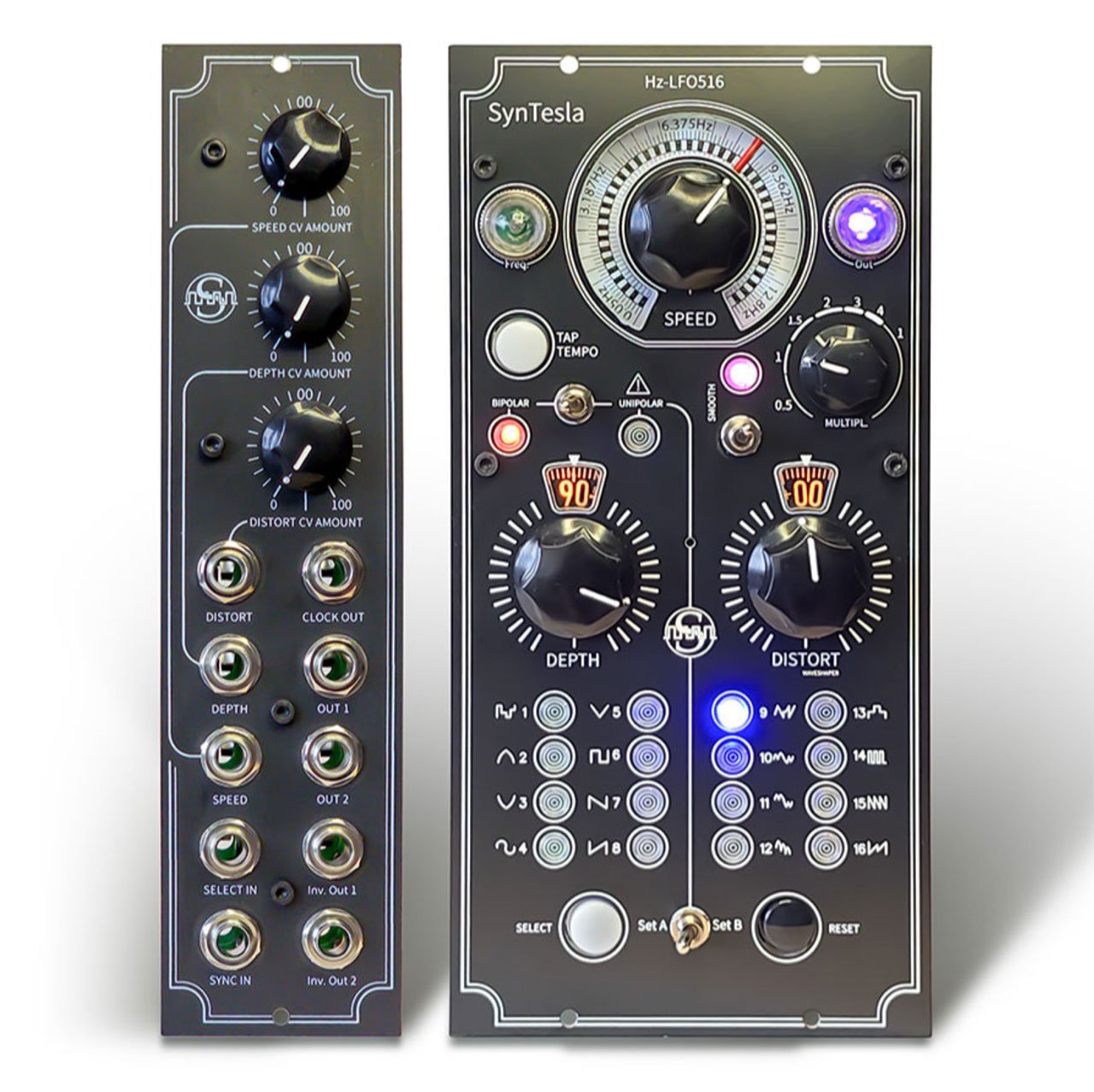

The LFO516 is a one of the most comprehensive low-frequency oscillator designed to meet all modulation needs.
Specific features:
- Tap Tempo and Sync in / clock out
- Cycle time division and multiplication.
- 16 waveforms divided into 2 banks
- Waveshaper (distort)
- Smooth filter
- Waveform sequence
- CV on main parameters
- Unipolar or bipolar selection on the fly
- 0/+9Volts output (Unipolar mode)
- -4.5/+4.5 Volts outputs (Bipolar mode)
- 2 direct outputs and 2 inverted outputs
- Dedicated CV and Outputs expander
- Parameters with backlit window
- Large illuminated indicators (jewels) for output and speed
- Fresnel lens on all lights
- Exclusive design by SynTesla
- Required voltages: +15V / -15V / +5V
