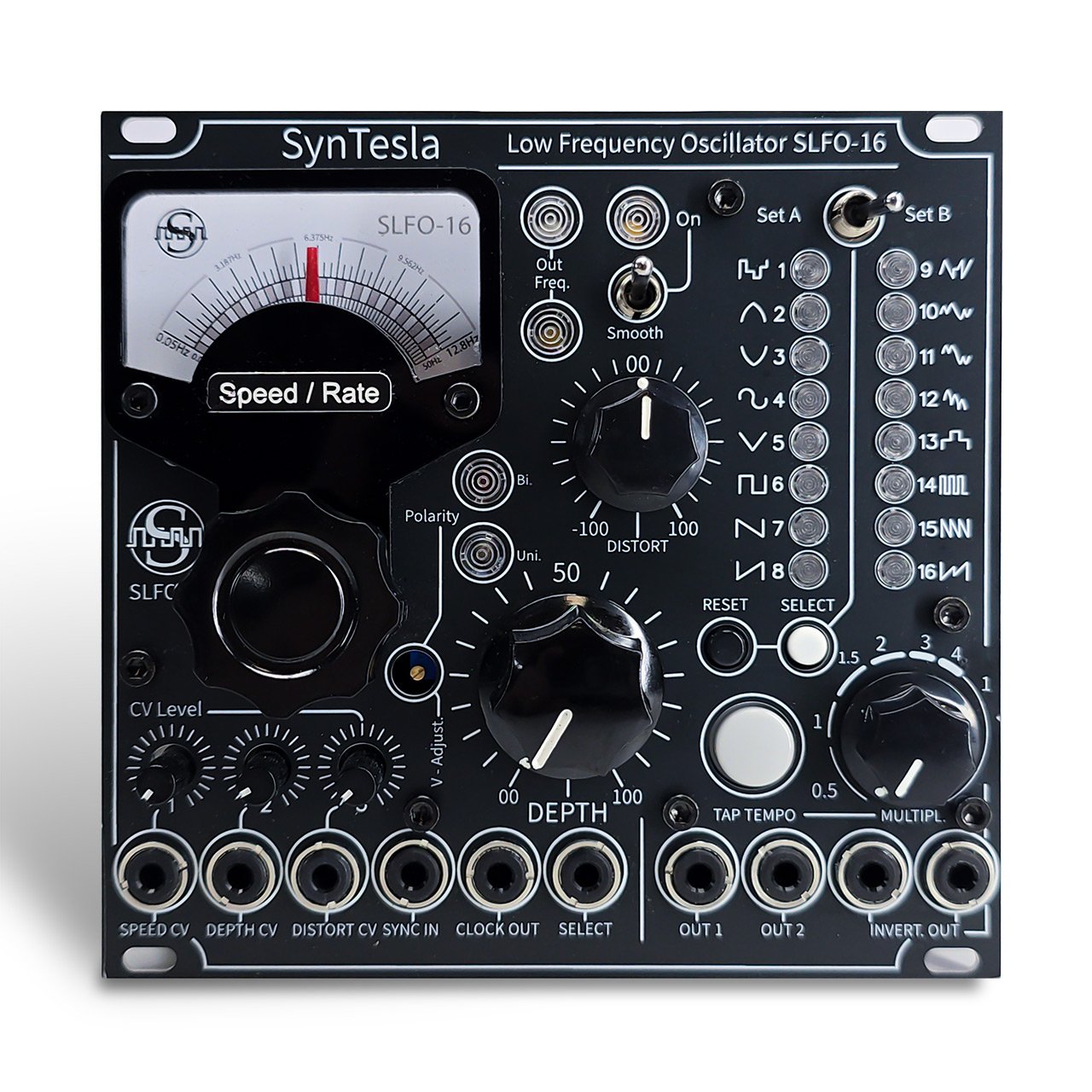

The LFO516 is a comprehensive low-frequency oscillator designed to meet all modulation needs.
Here are the main features:
- Tap Tempo and Sync in / clock out
- Cycle time division and multiplication.
- 16 waveforms divided into 2 banks
- Waveshaper (distort)
- Smooth filter
- Waveform sequence (external clock/pulse)
- Unipolar or bipolar
- Polarity adjustment on front panel
- CV on main parameters
- 2 direct outputs and 2 inverted outputs
- 0/+9Volts output (Unipolar mode)
- -4.5/+4.5 Volts outputs (Bipolar mode)

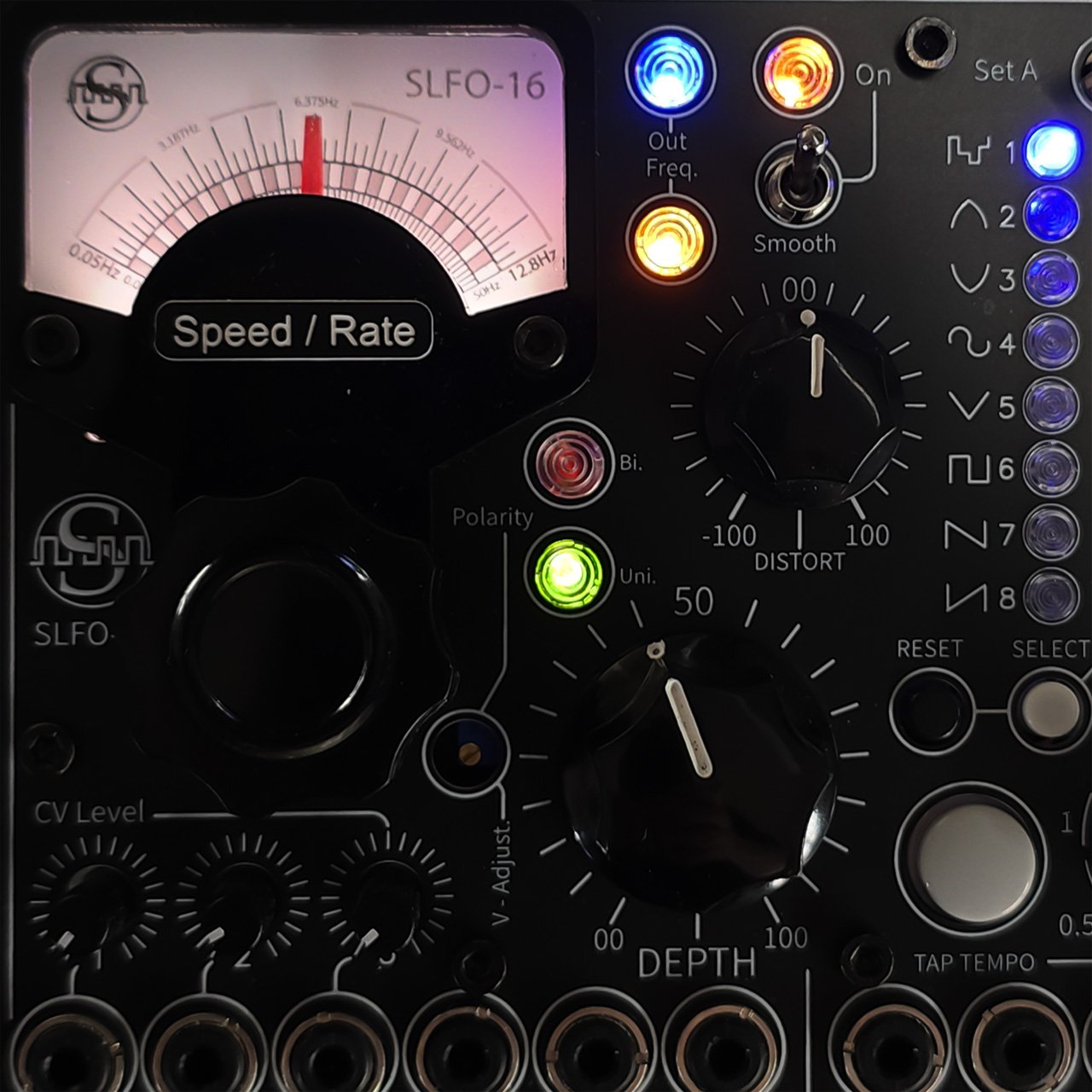

- Fresnel lens and/or Fiber optics on all lights
- Exclusive design by SynTesla
- Required voltages: +12V / -12V / +5V
